The P815 is THX Approved for integration into professional rooms, including THX Certified Screening Rooms and THX pm3 (professional Mixing, Monitoring and Mastering) studios..
Where to Buy“Audiophile accuracy and cinema impact make Procella’s P815 the ultimate home cinema/screening room main speaker”
CE PRO BEST AWARD

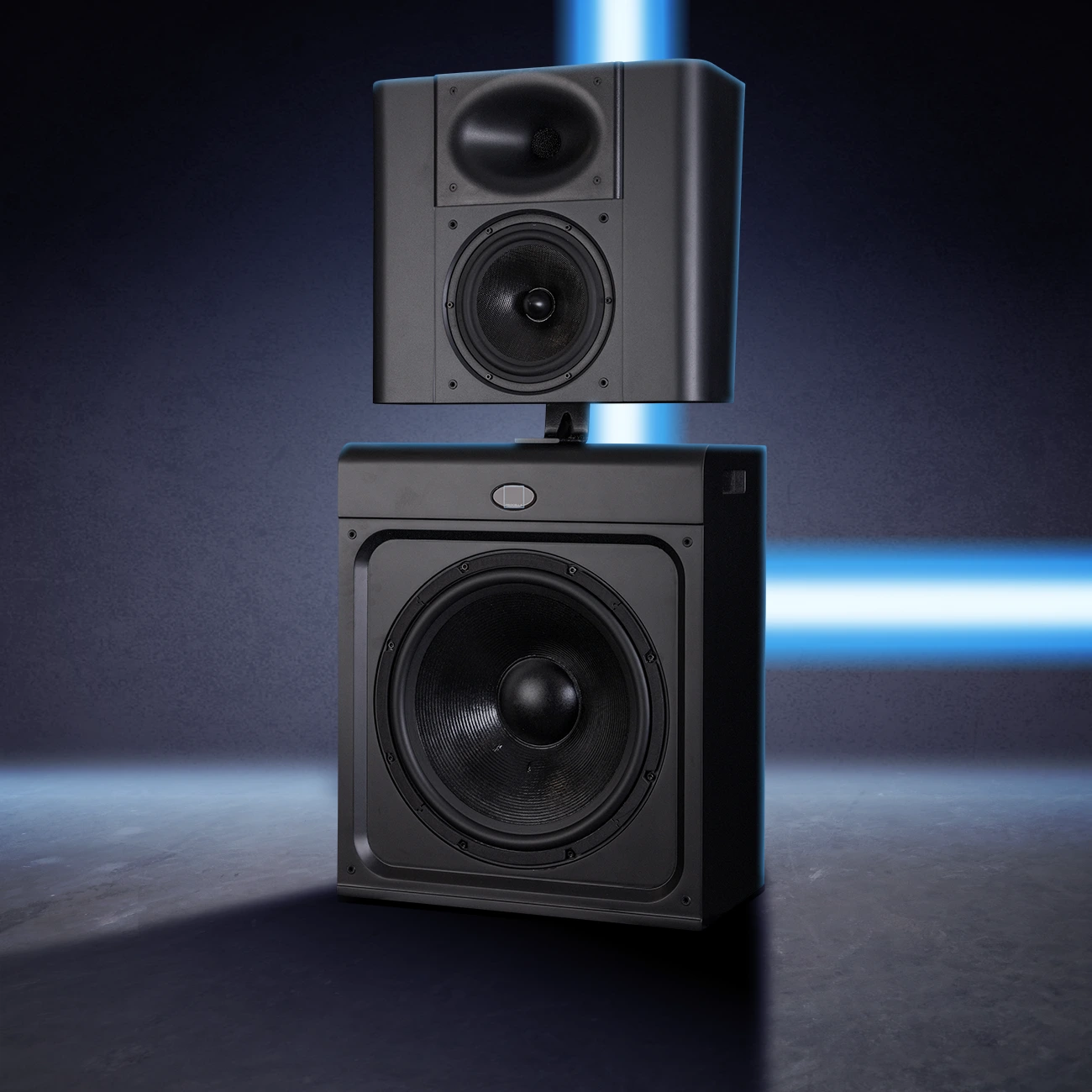

The P815 is the direct descendant of the original DTS preview theater main loudspeaker. This reference-quality, precision full-range speaker is designed for large home cinemas, studios, screening rooms and small cinemas. It combines the P8 reference loudspeaker with the P15Si 15” low-frequency module to produce THX cinema reference levels at an incredible 8 meters (over 26 feet). The P815 requires external bi-amplification. The external amplifier provides both DSP crossover and amplification for the P8 mid/high-frequency module and the P15Si low-frequency module. From revealing the smallest details to producing the awesome impact of a full-scale 96/24 recording or film soundtrack, with the P815 you become one with the performance. Winner of the prestigious CEPro BEST Award from CE Pro magazine and the Exc!te Award from Custom Retailer magazine, the loudspeaker is THX Approved for integration into professional rooms, including THX Certified Screening Rooms and THX pm3 (professional Mixing, Monitoring and Mastering) studios..
Maximum SPL
Free-standing 122dB continuous, 126dB peak, in baffle wall 126dB continuous, 132dB peak
Frequency response
-3dB points 40Hz and 20kHz
Dispersion pattern
-6dB Constant directivity: 80°H x 50°V from 1.5kHz
Crossover
4th Order Linkwitz-Riley 1.6 kHz and 150Hz
Components
High Frequency 1.5” compression driver with a Polyester diaphragm on (P8) a Procella designed elliptical, Low Frequency 15” driver with 75mm voice coil in 92 (LF815) litre sealed box, Midrange 8” high output driver with 40mm (P8) voice coil in 15 litre sealed box
Connectivity
2 pair gold-plated binding posts
Amplifier
external, Sold separately
Construction
Void free MDF internally cross braced Semi matte textured black paint finish
Dimensions and weight
HxWxD 40.6" x 18.9" x 11.0" / 1030 x 480 x 280 mm / 86.4 Lbs / 39.2 Kg
Shipping carton
P8 HxWxD 19.75" x 23.6" x 12" / 500 x 600 x 300 / 37.5 Lbs / 16.9 Kg – P15Si HxWxD 23.6" x 28.4" x 15.75" / 600 x 720 x 400 mm / 63.9 Lbs / 29 Kg
Included
connecting bracket, Damper feet, Protective grilles
Assembly
Belgium 100% QC testing
