P6 Mk2

P6 Mk2 is perfect for an easy integration with flat-screen televisions, projection screens, and immersive speaker environments.

Where to Buy

Description

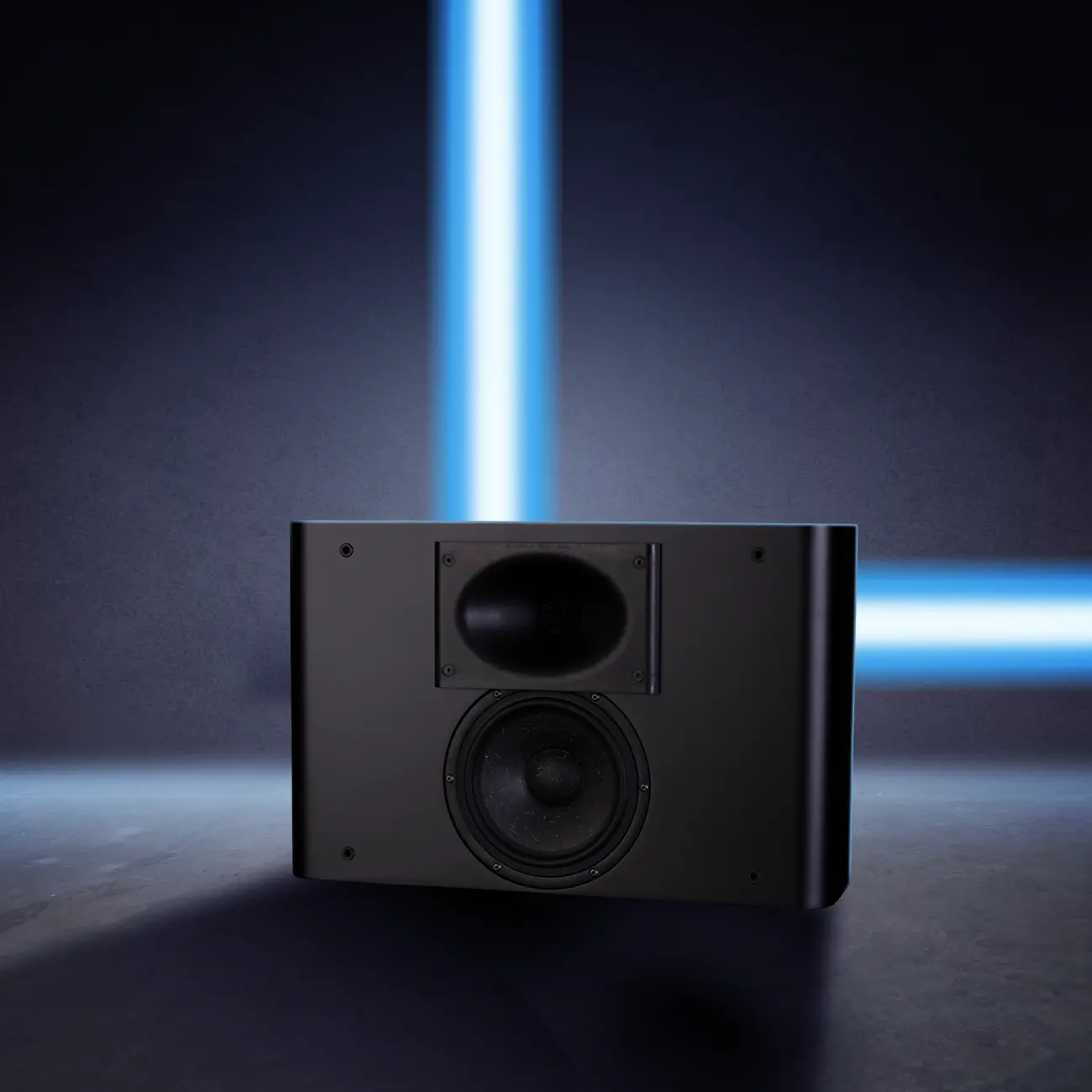

The new P6 Mk2 brings Procella reference quality audio and a very wide dynamic range in a slim-profile cabinet (only 125mm / 4.9” deep). This makes it easy for integration with flatscreen, projection screens, and surround speaker environments. A 6.5” high-efficiency woofer driver combines with a new Neodymium high frequency compression driver mounted on a Procella constant directivity waveguide. It produces uncompressed dynamics at high output levels with lifelike clarity for music and movies. The P6 Mk2 can be utilized as main and surround channel speaker, and is also used as the mid and high frequency module of the full-range P610 loudspeaker. Identical Voices™ timbre-matched to all other Procella speaker models. It’s speaker grille now covers essentially the entire front baffle, rather than just the speaker’s woofer driver, matching the appearance of the P6V Mk2. with a P15A or P15 subwoofer.

Specification

Impedance

‍8 ohms nominal, Above 10 ohm in working range

‍

‍Power handling

Continuous 100 Watt, Peak 300 Watt

‍

Sensitivity

1m/1w 90dB

‍

Maximum SPL

in baffle wall 116dB continuous, 122dB peak

‍

Frequency response

-3dB points 70Hz and 20kHz

‍

Dispersion pattern

-6dB Constant directivity; 90°H x 60°V from 2.0kHz

‍

Crossover

Asymmetric Linkwitz-Riley 1,9kHz, BSC

‍

Components

1” neodymium driver with a Polyester diaphragm on elliptical constant directivity wave guide, Midrange 6.5” driver with 40mm voice coil in 9 litre sealed box

‍

Connectivity

Gold plated large diameter binding posts

‍

Construction

Void free MDF internally cross braced Studio vinyl finish as standard

‍

Dimensions and weight

8,5 Kg / 18,7 Lbs, H x W x D / 305 x 470 x 125mm / 12" x 18 1/2" x 4 7/8" / 8,5Kg / 18,7Lbs

‍

Shipping carton

10 Kg / 22 Lbs, H x W x D / 395 x 565 x 245mm / 15 1/2" x 22 1/8" x 10" / 10Kg / 22Lbs

‍

Wall mount

Inserts for VESA 100 bracket, Wall mount bracket included

‍

Assembly

Belgium 100% QC testing

‍
