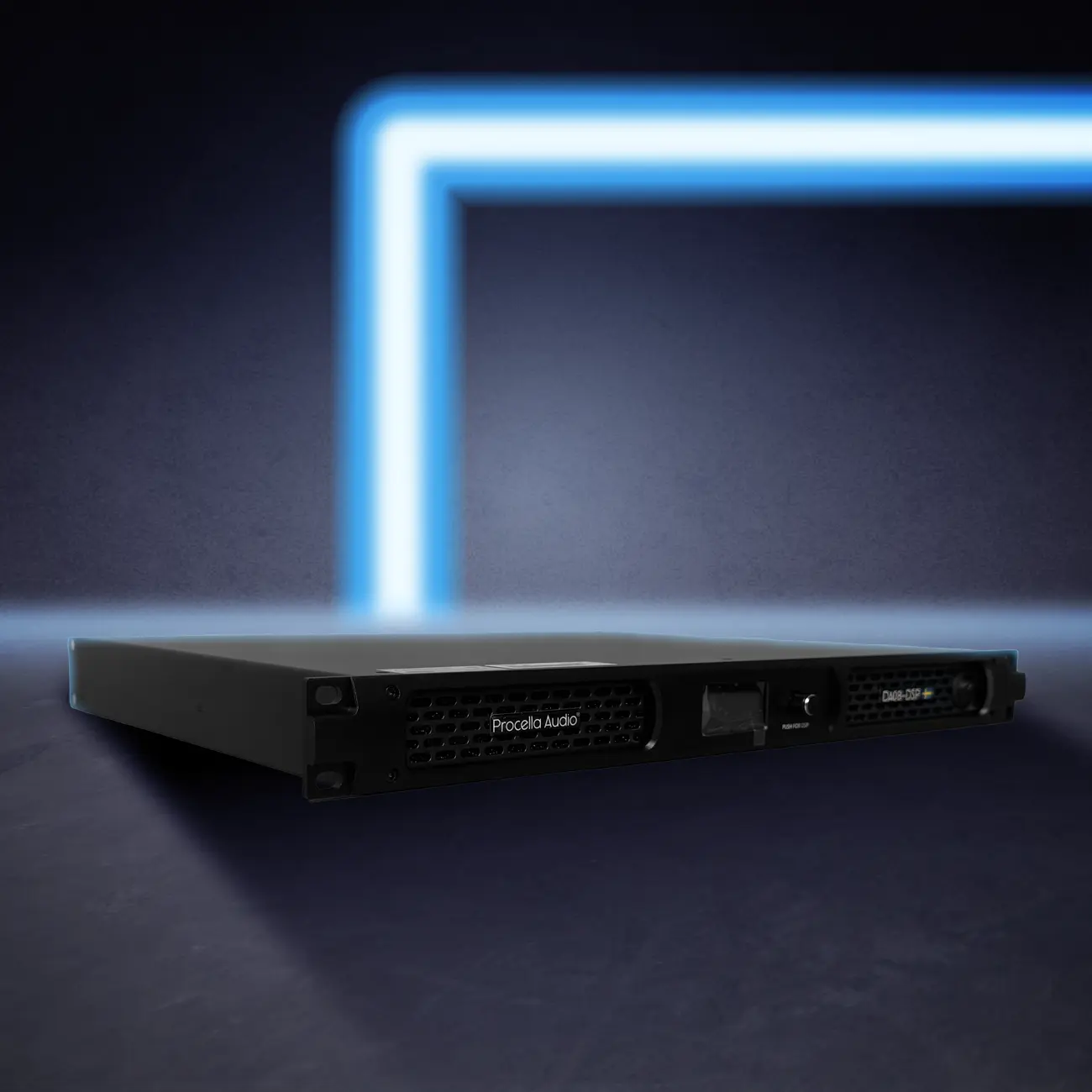

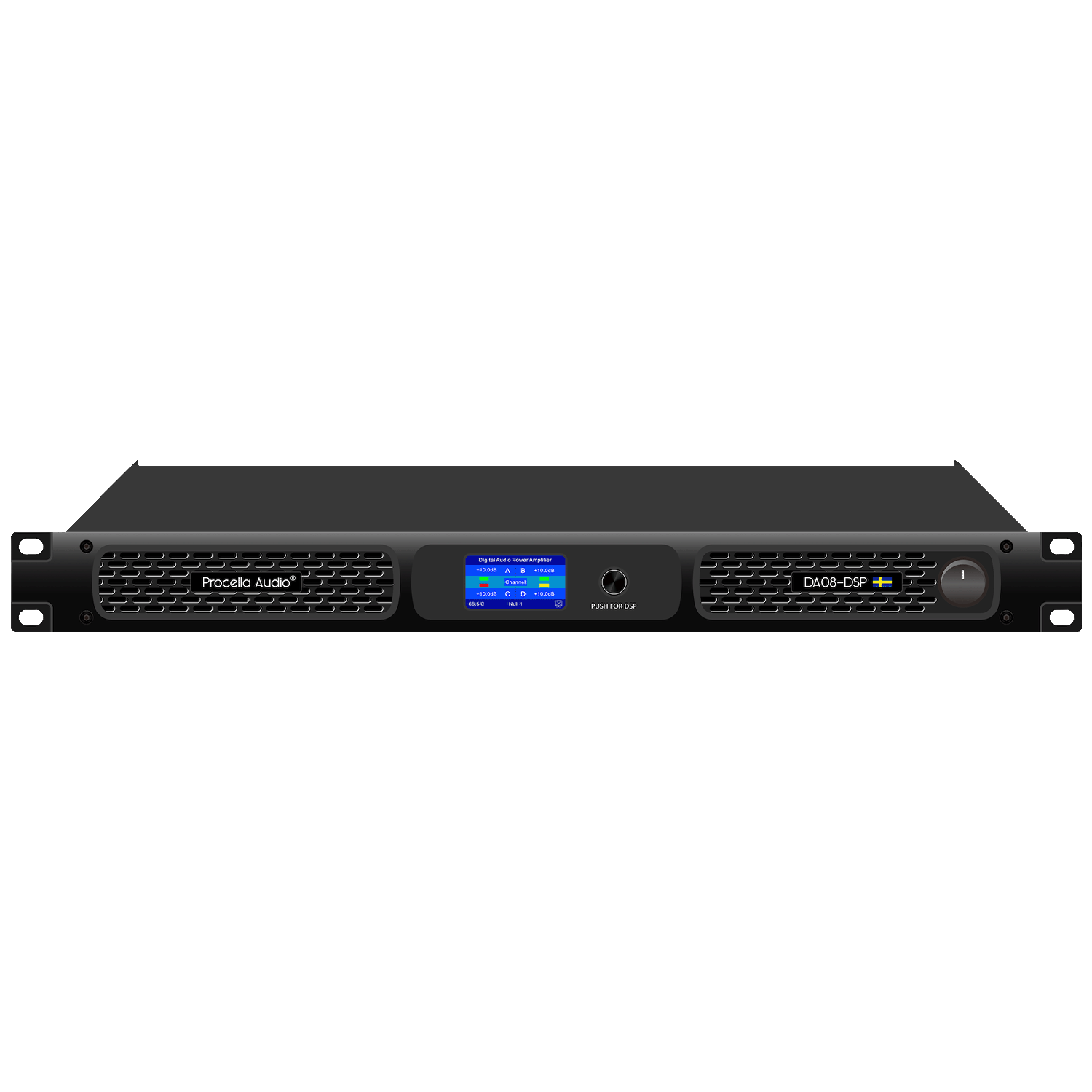

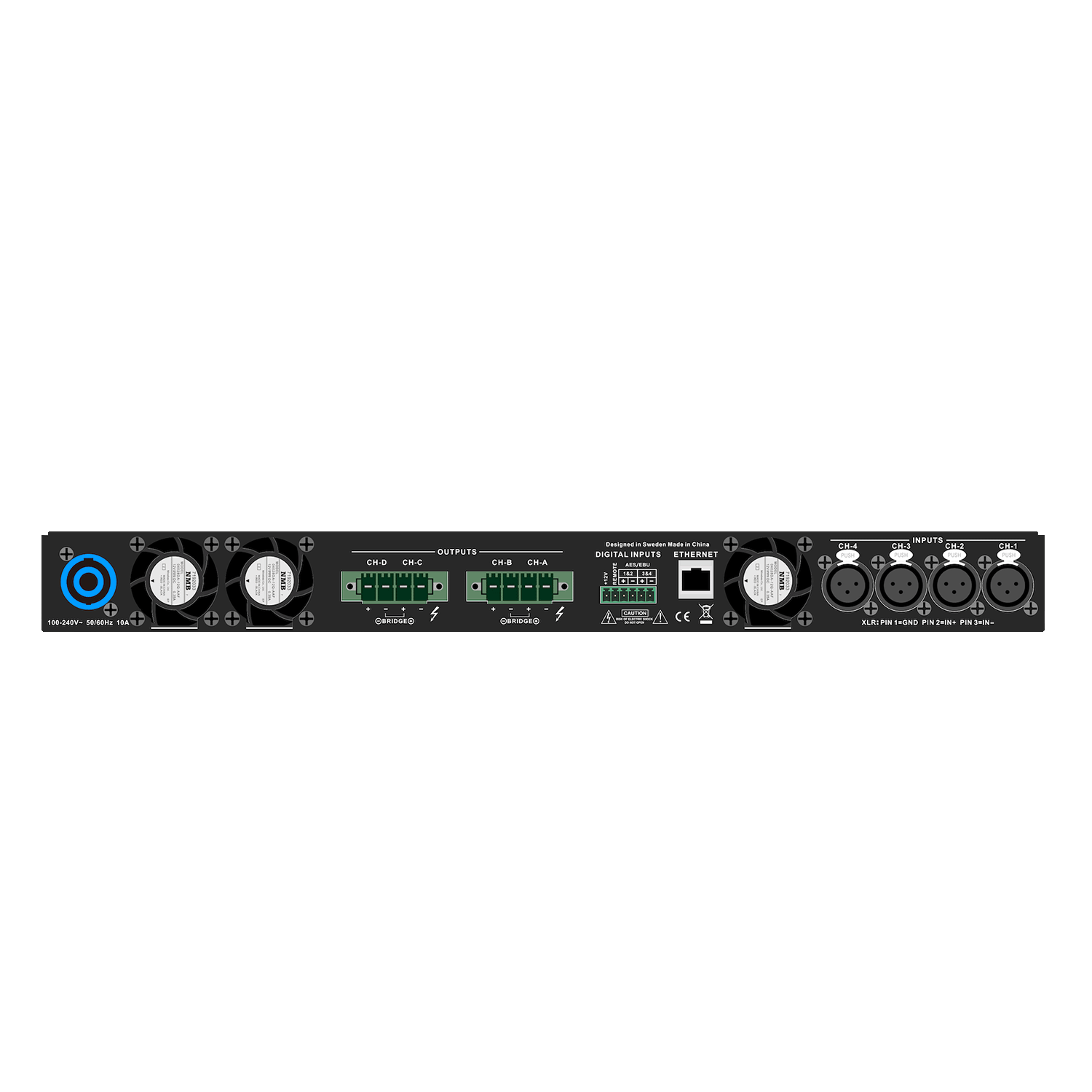

The Procella DA08-DSP is a massive power amplifier the first amplifier which is Designed by Procella Audio.
Where to BuyThe DA08-DSP is massive output power amplifier and has the horsepower to bring out every ounce of performance designed into each of Procella’s high-output speaker and subwoofer models.
Procella’s DA08-DSP can be used as a four-channel amplifier to produce 4x 800W (8 ohms) and 4x 1600W (4 ohms), but switch to bridge mode, and it will deliver 2x 3200W (8 ohms) and 2x 5800W (4 ohms)!
In a single rack unit, this power station ensures maximum output and dynamic range, especially for Procella subwoofers.
40 factory presets enable multiple configurations with Procella’s high output speakers and subwoofers.
Output power @ 4Ω/8Ω
4x 800W
Max. Output current
45A peak
Signal To Noise-Ratio
>105 dB A-weighted, 20 Hz-20 kHz, 8 Ω
THD+N (typical)
<0.05% (20 Hz – 20 kHz, 8 Ω load 3 dB below rated power)
Frequency Response
20 Hz – 20 kHz (+0/-0.5 dB
8 Ω load, 3 dB below rated power)
Protection Circuits
Short circuit protection, DC protection, Limiter, under voltage protection, over temperature protection, overload protection
Operating Voltage/Frequency
Universal Mains, 90-260V, 50-60Hz
DSP for all channels
40 selectable presets, Level, Parametric eq, Delay, matrix limiter
Carton content
Mains power cable, Adhesive rubber feet 4x, User guide
Dimensions WxDxH /Net weight
483 x 45 x 370 mm (1U) / 19” x 1.7” x 14.6”, 9,0 Kg / 19,8 Lbs
Shipping Carton WxHxD / Shipping weight
570 x 135 x 515 mm / 22,44”x 5,31”x 20,28”, 10 Kg / 22.05 Lbs
Assembly
Designed from the ground up by Procella Audio
