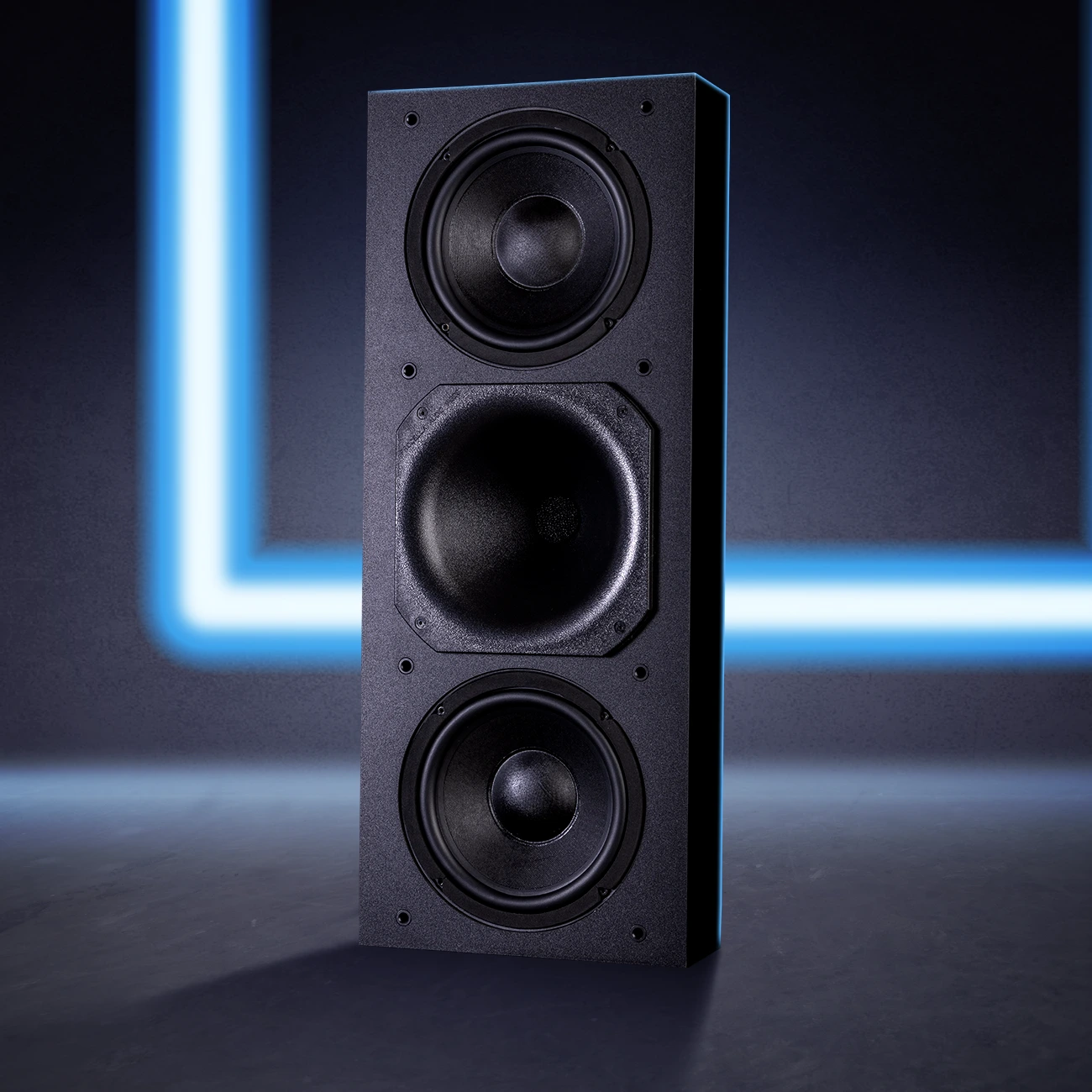

The C28 is a very high-power Surround Loudspeaker for medium and large cinemas.
Where to BuyThe C28 is a very high power Surround Loudspeaker for medium and large cinemas. Ideal for overhead and side wall installation in Dolby Atmos® theaters. (≥ 15m).
Power handling
Continuous 600 Watts, Peak 1,200 Watts
Impedance
8 ohms nominal
Sensitivity
1m/1W 99 dB
Maximum SPL
127dB continuous, 133dB peak
Frequency response (-3 dB)
60Hz and 20kHz
Dispersion pattern
90° circular, constant directivity above 1.0 KHz
Crossover
2nd Order Linkwitz-Riley @1.4 KHz
Components
High: 1” compression driver with 1.5” voice coil and Polymer diaphragm on elliptical constant directivity waveguide, Low: 2 x 8” Neodymium high output drivers with 2” voice coils in a sealed enclosure
Connectivity
Gold plated large diameter binding posts
Construction
Void free MDF internally cross braced Painted black matte finish
Dimensions and weight
700 x 280 x 180 mm
Wall mount
Integral M6 threaded inserts provided on enclosure sides; 5” x 2.75” pattern on back baffle
Assembly
Belgium 100% QC testing
