C212

The C212 is a Two-Way Biamplified behind Screen Cinema Loudspeaker for small to medium sized cinema’s (up to 200 seats).

Where to Buy
Description

The Procella C212 is a high quality professional cinema loudspeaker for those cinema owners who value high quality audio. And at a cost not much more than typical low-budget, low-quality loudspeakers.

Applications: Screen channel loudspeaker for cinema rooms smaller than 22m in length, such as post production stages, small to medium commercial cinema rooms, art house cinemas, museum cinemas, VIP & Preview cinemas, etc.

The Procella C212 is entirely made in Europe. Only high quality Italian driver components were selected for the C212. The C212 is designed, assembled and 100% QC tested in our factory in Sweden.

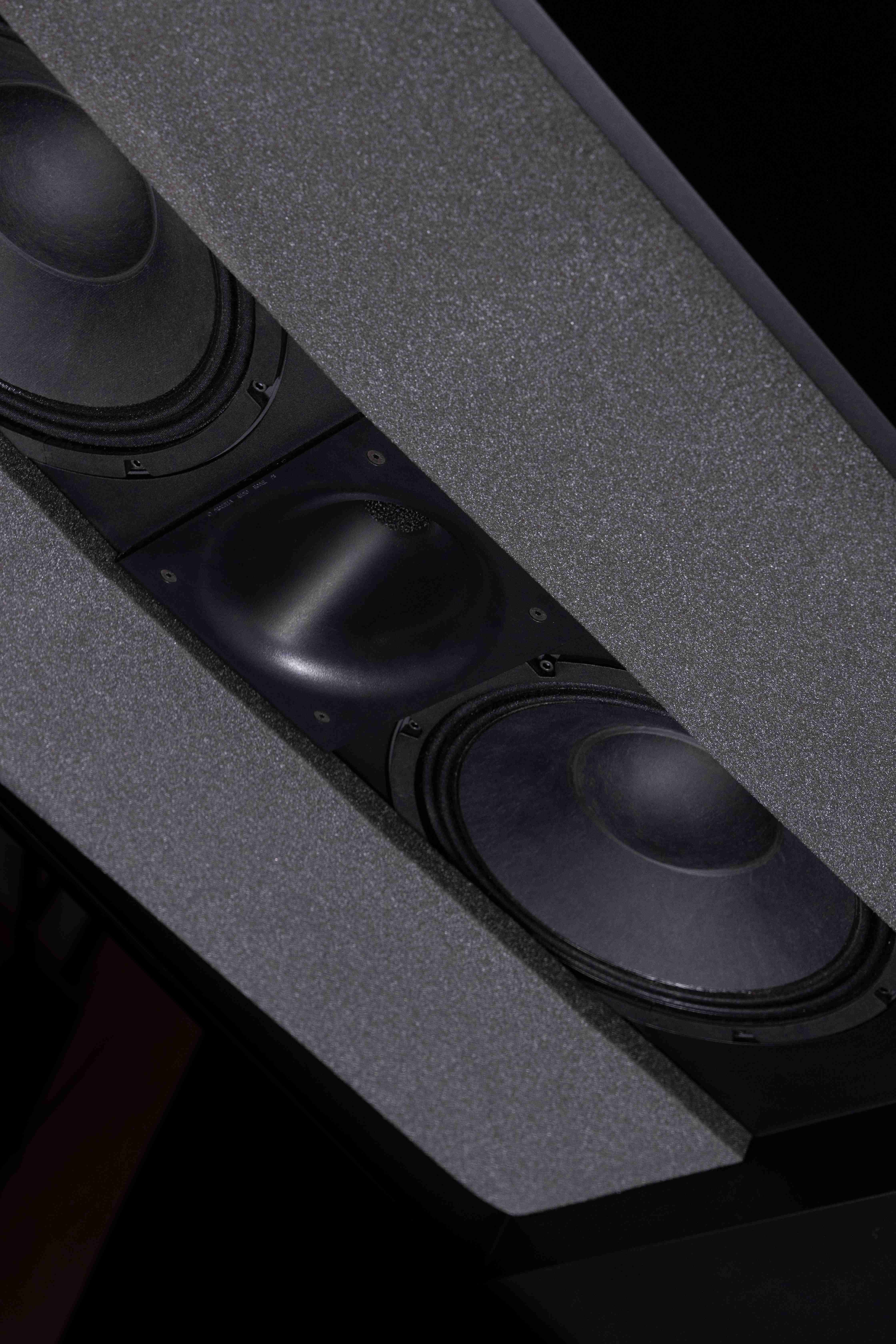

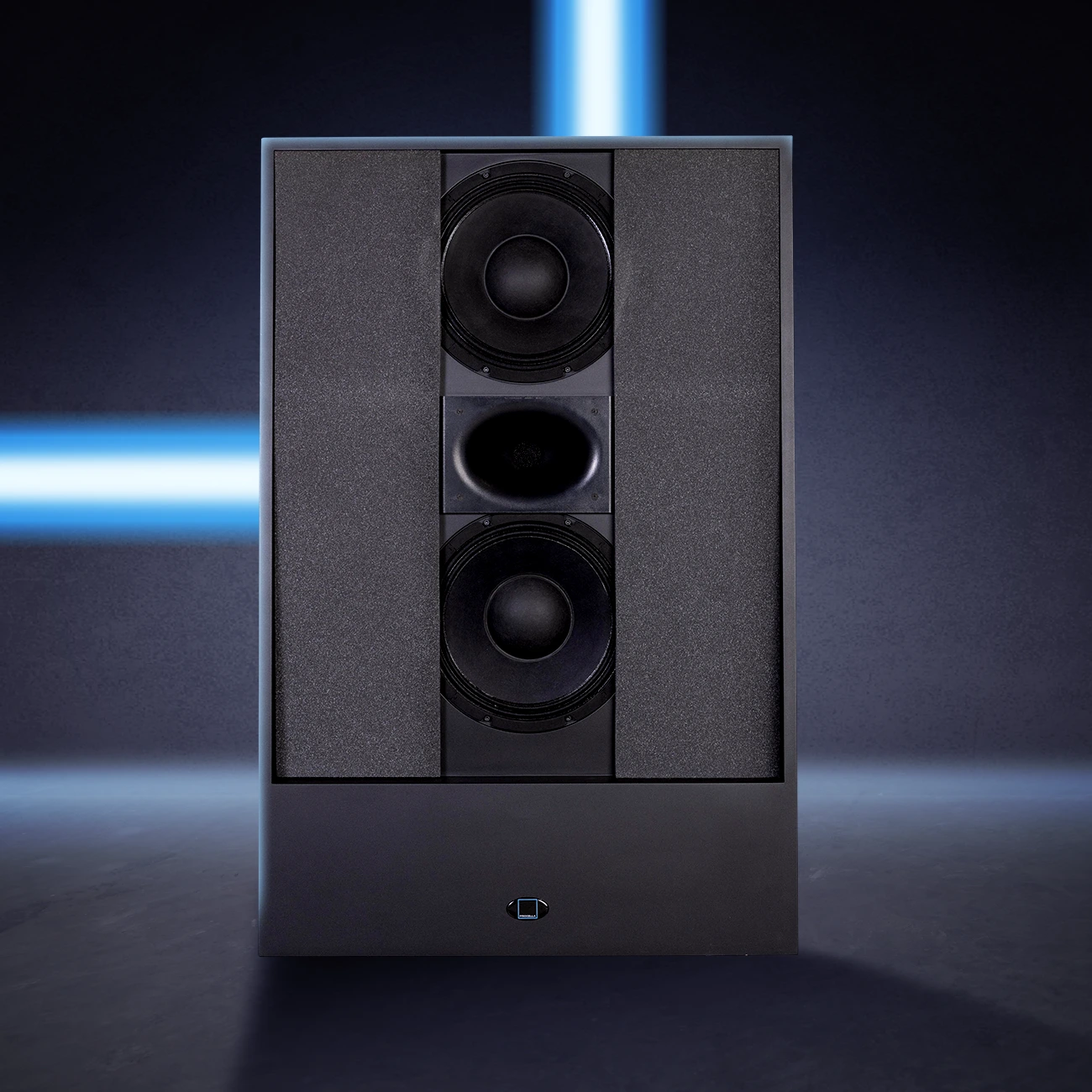

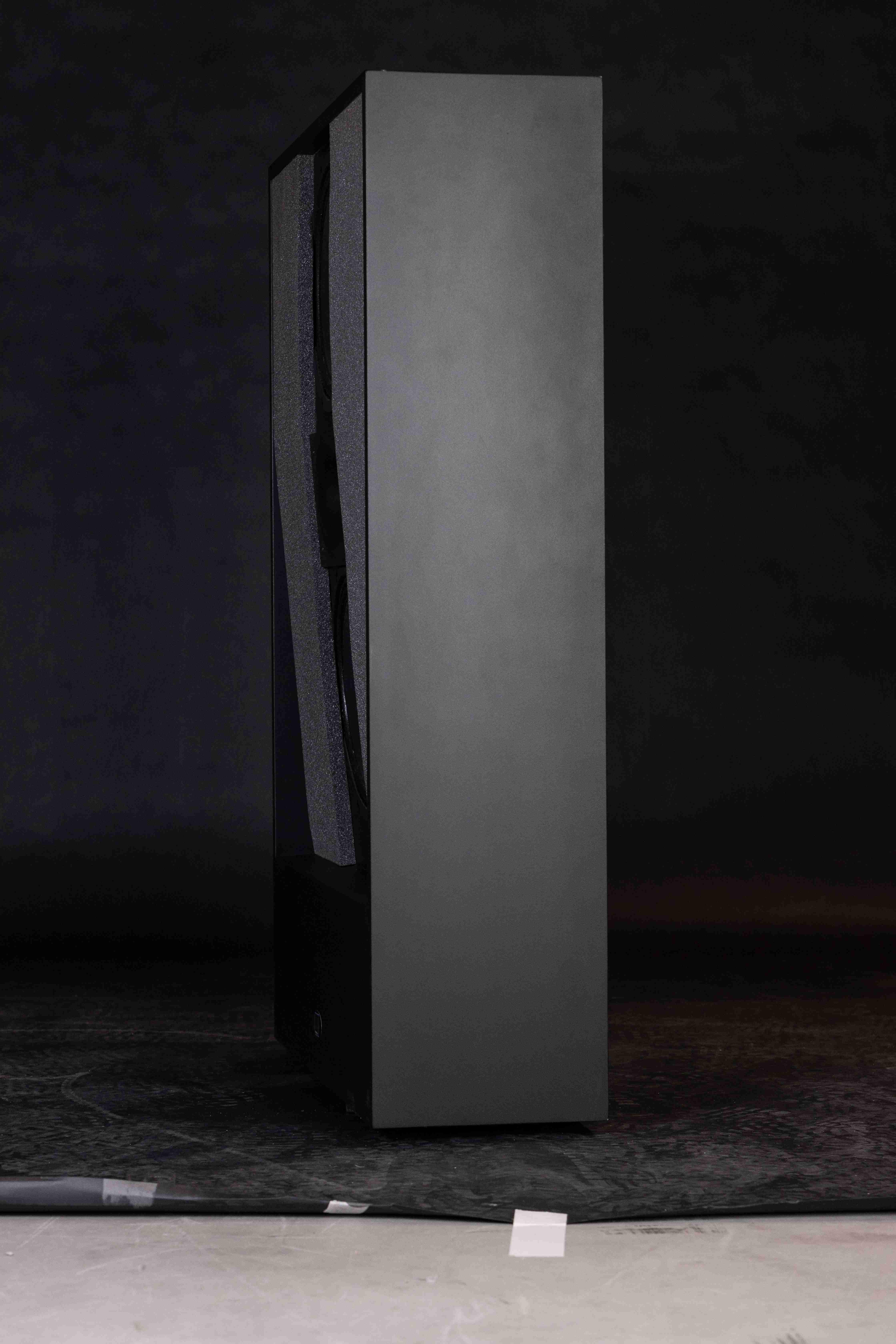

The Procella C212 is two-way, biamplified screen channel loudspeaker with two high power 12″ low frequency drivers, and a 1″ high frequency compression driver on our proprietary, constant directivity waveguide. The C212 has an output of 131dB continuous and 135dB peak SPL. The dispersion above 1.5kHz is uniform, in a asymmetric 90 x 40 degrees pattern, and combined with the 5° downward angle on the HF, it provides ideal and uniform coverage of the entire seating area. The C212 has a very shallow enclosure (280mm), ensuring easy installation behind any screen.

Contact us about the C212 if you are looking for quality audio for your cinema!

‍

Specification

Power handling

‍Continuous 900 Watt, Peak 1,800 Watt

‍

‍Impedance

LF 4ohm, HF 16ohm

‍

Sensitivity

1m/1W 101dB

‍

Maximum SPL

free-standing 131 dB continuous, 137dB peak

‍

Frequency response (-3 dB)

40Hz and 16kHz

‍

Dispersion pattern

90 ̊ horizontal x 15° vertical above axis, 90° horizontal x 25° vertical below axis, -6dB Constant directivity

‍

Crossover

4th Order Linkwitz-Riley @1.9 KHz

‍

Components

Low: 2 x 12” Neodymium high output driver with 3” voice coil in sealed enclosure, High 1” driver with 2” voice coil and Polymer diaphragm on elliptical constant directivity waveguide

‍

Connectivity

4 pole SPEAKON

‍‍

Construction

Void free MDF internally cross braced Painted black matte finish

‍

Dimensions and weight

1150 x 760 x 280 mm

‍

Assembly

Belgium 100% QC testing

‍

Amplifier

2ch with DSP required, Sold separately

‍
