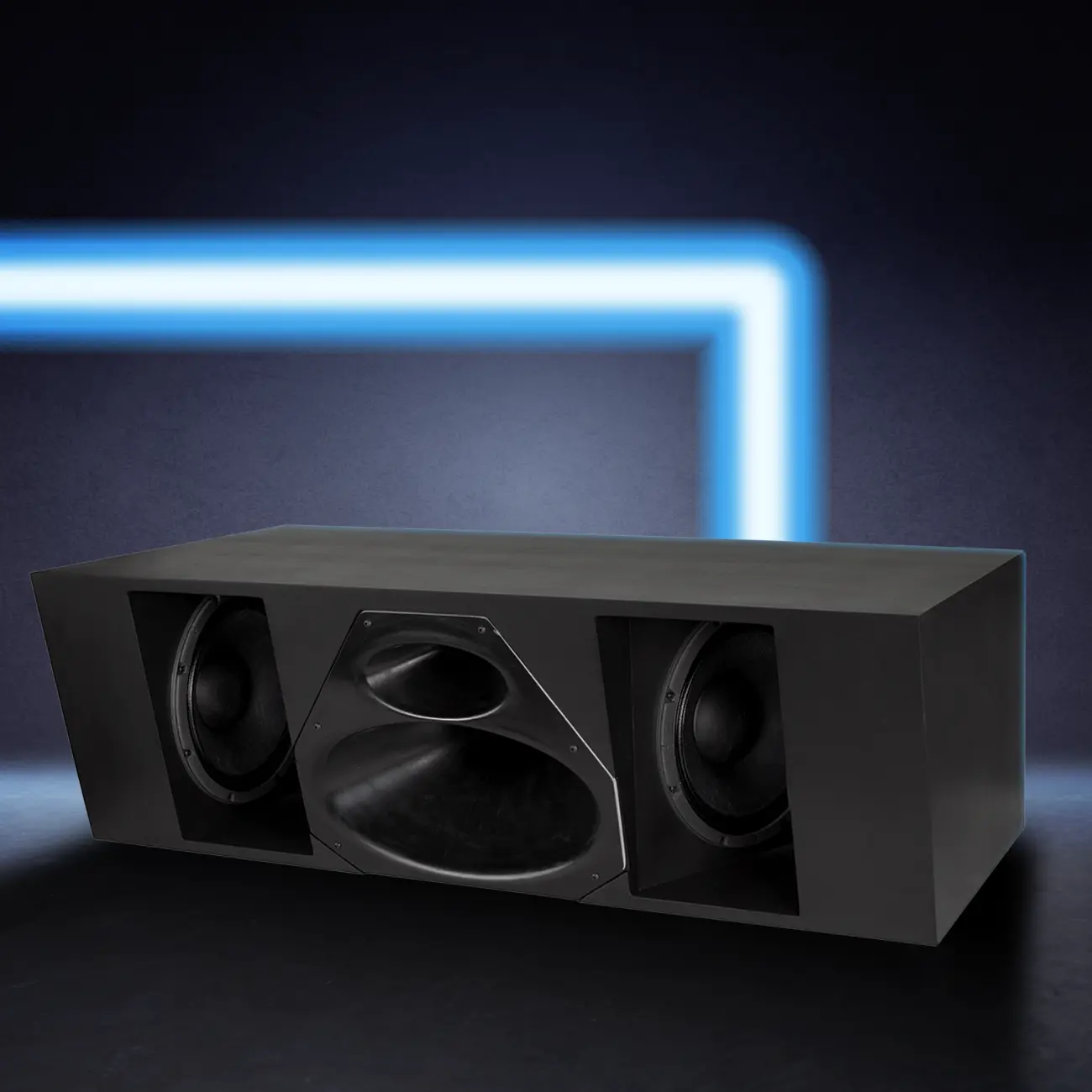

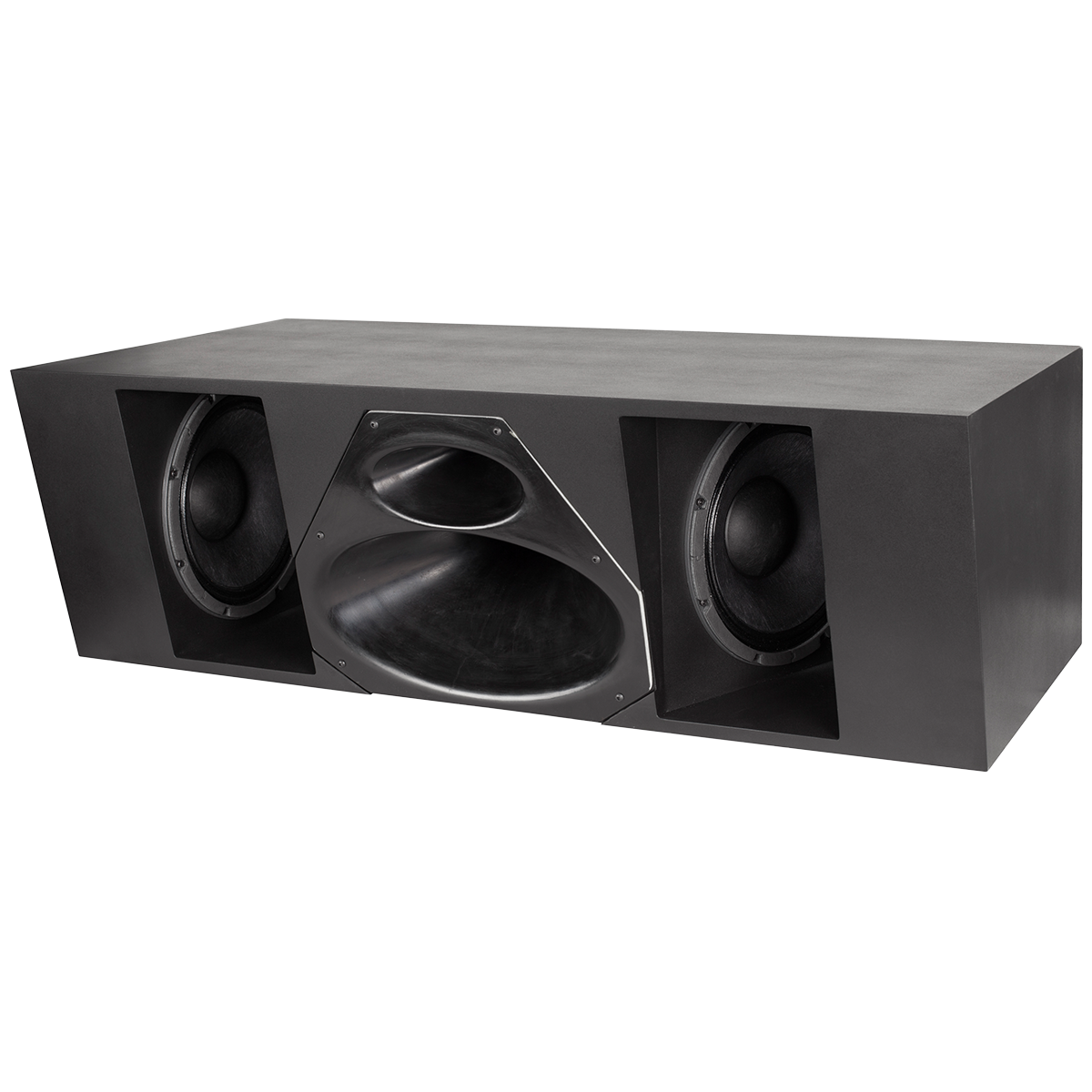

The C102 is a three-way or quad amplified loudspeaker for above screen mounting in medium to large size rooms.
Where to BuyThe C102 is a three-way or quad amplified loudspeaker for above screen mounting in medium to large size rooms. Procella’s Above Screen speaker designs anticipate the physical environment of a Video Wall micro-LED display and resolve the acoustical challenges inherent to using display devices that do not allow speaker placement behind a screen.
Both C102 and C124 Full-Range Above Screen loudspeakers are the speakers originally designed for these cinemas. They are the recommended screen channel speakers for larger home theaters and screening rooms that plan to use a Video Wall micro-LED display.
Moving the speakers from behind the screen creates a major challenge: how do we match the location of the sonic images created by the loudspeakers to the visual image locations on screen? Procella Audio already created the solution to this acoustical dilemma. The C124 designed for above screen placement.
Impedance
High Frequency 1 or 2 inputs, each 8 ohm, Low Frequency 2 inputs, each 4 ohm
Power handling
High Frequency 250 watt continuous | 500 watt peak, Low Frequency 2 x 1.000 watt continuous | 2 x 2.000 watt peak
Sensitivity
1m/1W 102dB LF, 106dB HF
Maximum SPL
Freestanding 135dB continuous | 141 dB peak
Frequency response
-3dB points 50Hz and 16kHz
Dispersion pattern
-6dB Constant directivity: 80° horizontal x 30° vertical below axis
Crossover
4th Order Linkwitz-Riley @1.6 KHz
Components
High Frequency 1” driver with a Polyester diaphragm on a Procella designed elliptical constant directivity wave guide, Low 4 x 12” Neodymium high output driver with 3” voice coil in V-loaded sealed box, Mid 8” Neodymium driver on elliptical constant directivity waveguide
Connectivity
2 x 4 pole SPEAKON
Construction
Void free MDF internally cross braced Painted black matte finish
Dimensions and weight
390 x 1186 x 520/603 mm (12° tilt)
Assembly
Belgium 100% QC testing
