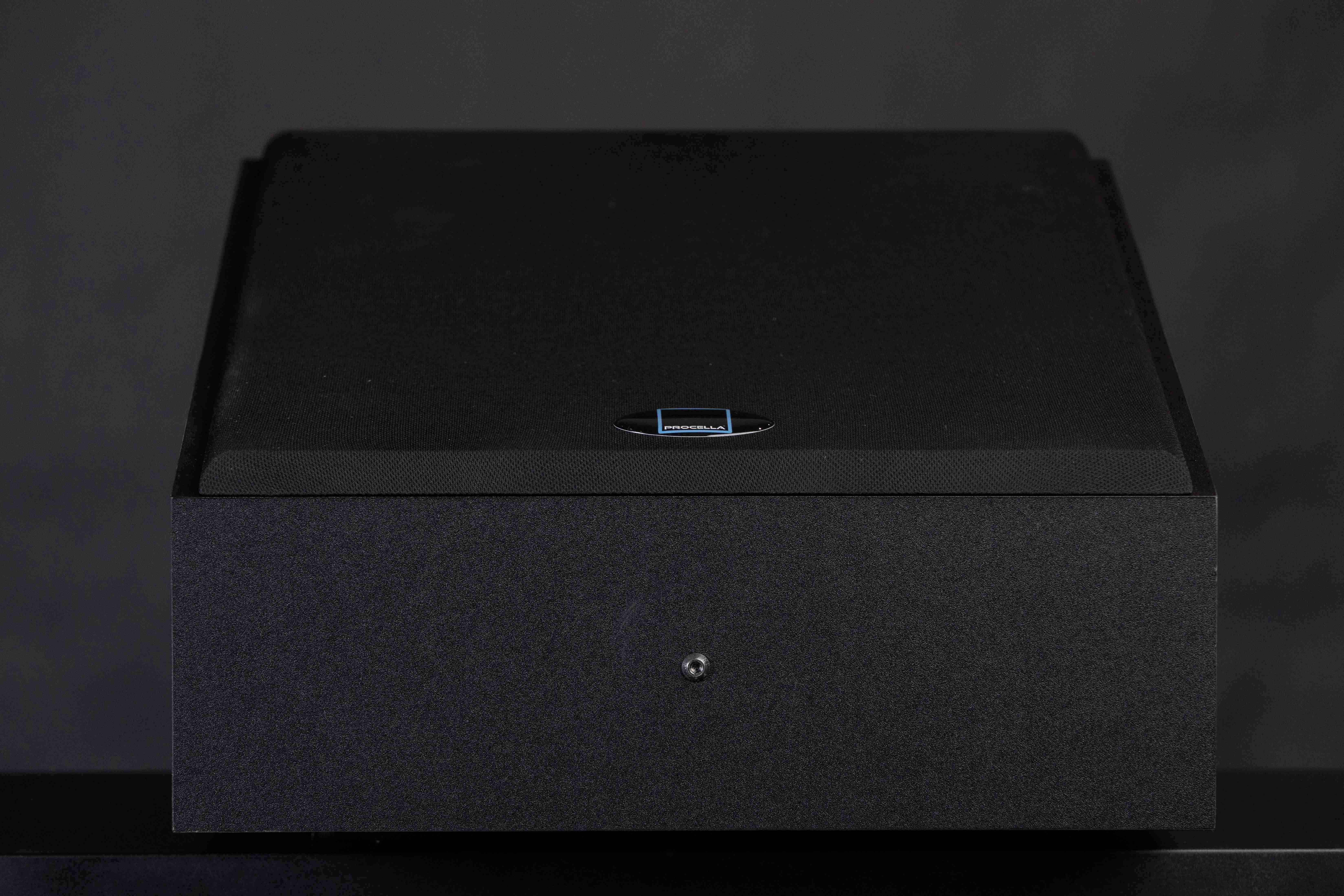

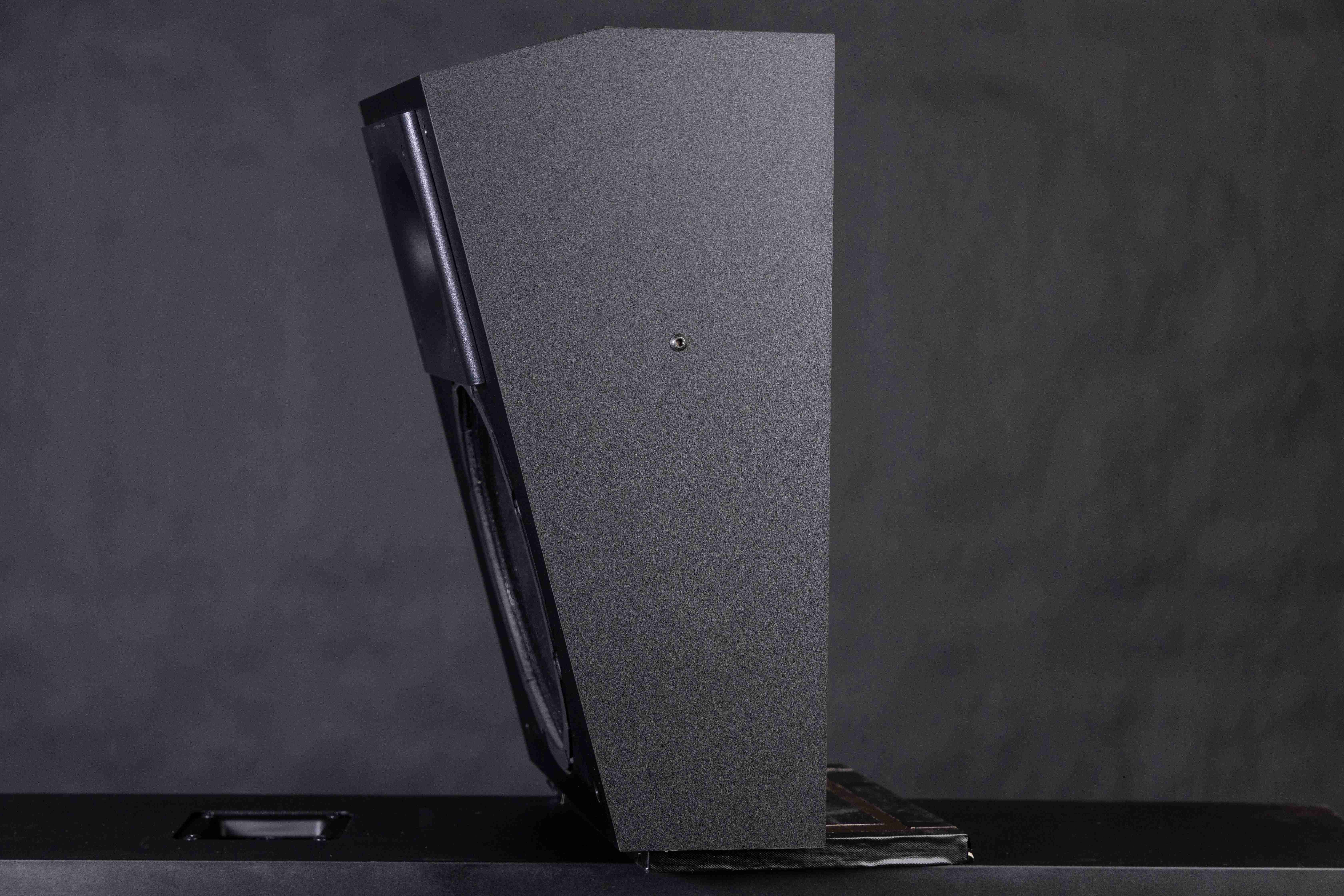

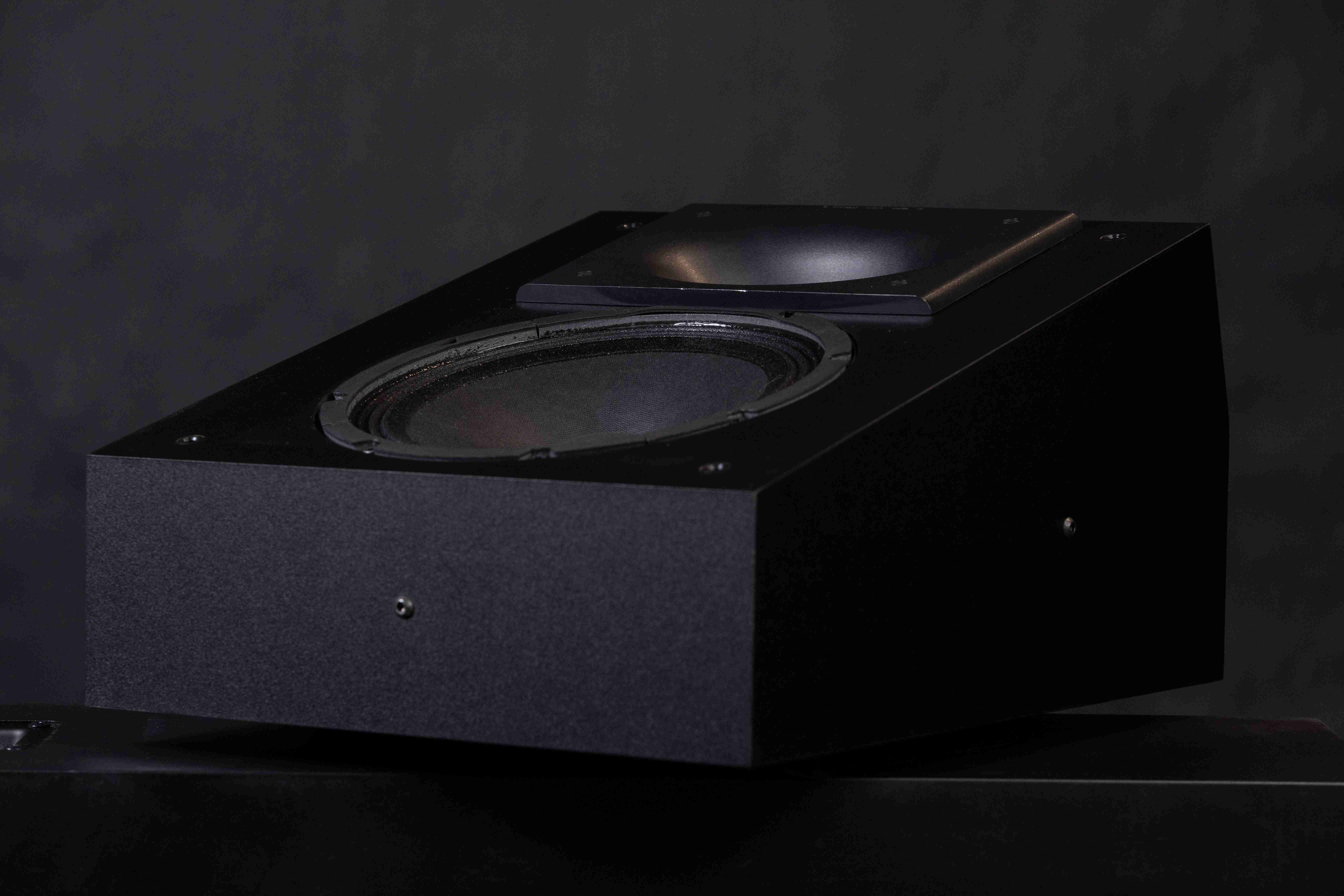

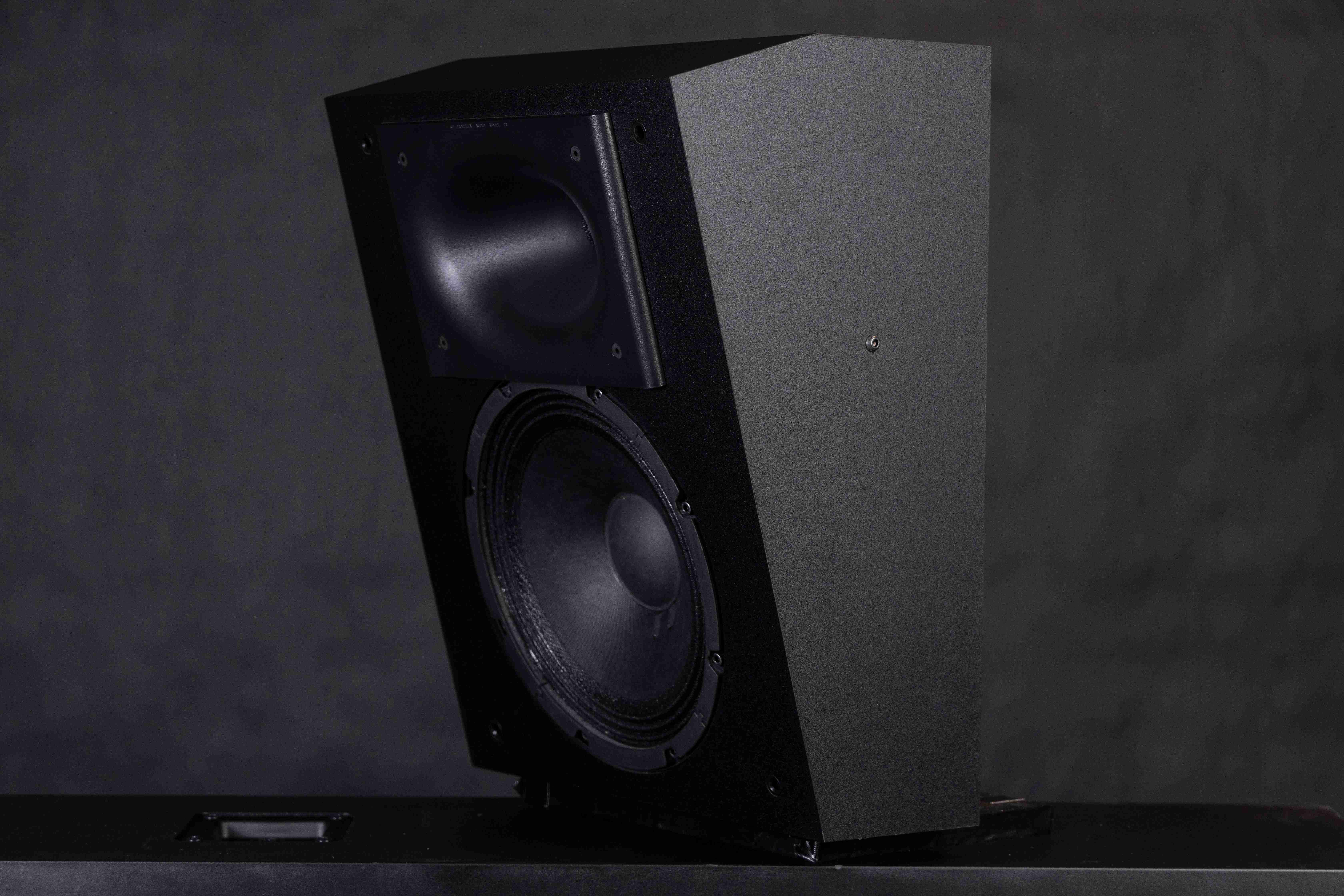

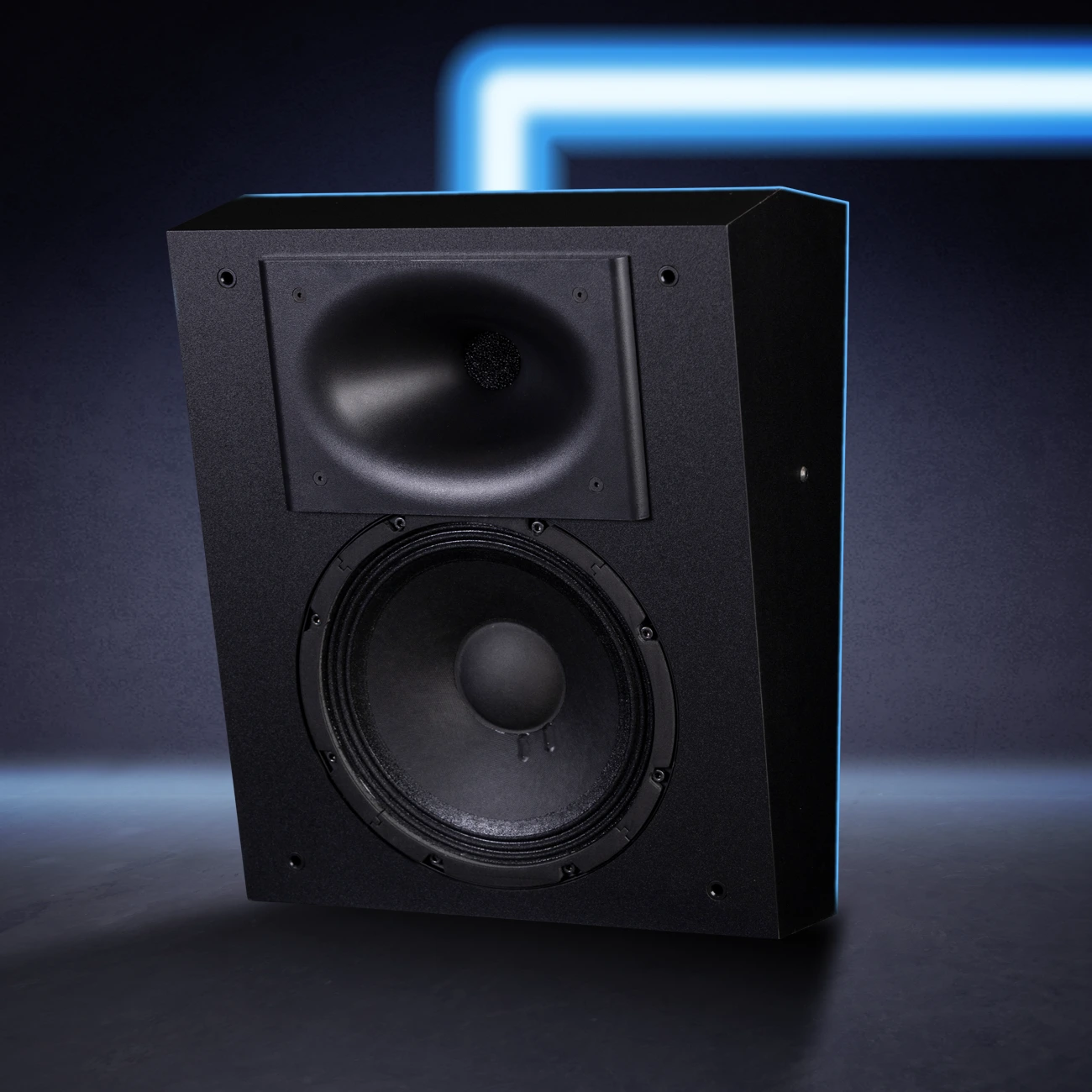

The C10 is a high-power Surround Loudspeaker for small and medium cinemas.
Where to BuyThe C10 is a very high power Surround Loudspeaker for small and medium cinema’s. Ideal for side wall installations cinemas less than 15m wide. A wall mount bracket is included.
Power handling
Continuous 250 Watts, Peak 500 Watts
Impedance
8 ohms nominal
Sensitivity
96dB 1m / 1W
Maximum SPL
121dB Continuous, 127dB Peak
Frequency response (-3 dB)
70Hz and 20kHz
Dispersion pattern
Constant directivity: 90° horizontal x 40° vertical above 1.6 KHz
Crossover
2nd Order Linkwitz-Riley @1.8 KHz
Components
High: Compression driver with 1” voice coil and Polymer diaphragm on elliptical constant directivity waveguide, Low: 10” Neodymium high output driver with 2.5” voice coil in sealed enclosure
Connectivity
Gold-plated binding posts Top of cabinet location
Construction
Void free MDF internally cross braced Painted black matte finish
Dimensions and weight
475 x 380 x 240/120 mm (15° tilt)
Wall mount
Wall bracket included Integral M6 threaded inserts provided on enclosure sides, top and bottom
Assembly
Belgium 100% QC testing
